Laboratory & Life Science Equipment
Everyday bench equipment for shaking, stirring, heating, incubating and pipetting samples and reagents accurately and consistently.
Mixing, heating and liquid handling equipment covers the routine tasks found in nearly every method. Orbital shakers and oscillators mix cultures, extractions and soil suspensions, decolorizing shakers gently rock gels during staining, magnetic stirrers and heating stirrers dissolve reagents and prepare media, digital hotplates heat vessels evenly, and constant-temperature water baths warm samples and reagents to a set point. Single and multi-channel adjustable pipettes dispense accurate volumes into tubes and microplates. University, research, food, soil, water and molecular biology laboratories use them daily. ASFAN supplies and supports this equipment and helps specify complete laboratories.

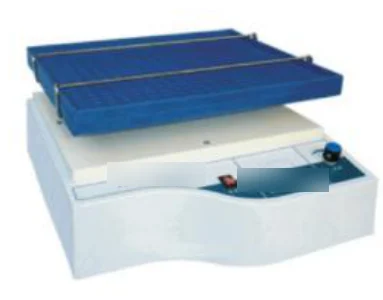

Low-speed shaker for gel staining and destaining.
| Frequency | 0–80 rpm |
|---|---|
| Amplitude | Universal adjustment |
| Tray | 320 × 265 mm |
| Overall dimensions | 370 × 335 × 170 mm |

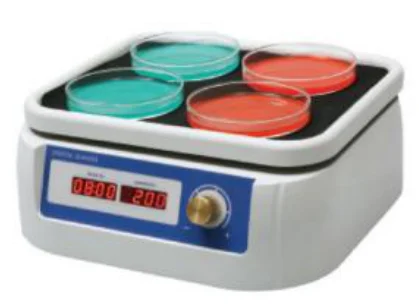

Compact orbital shaker with timer and brushless DC motor for a variety of mixing tasks; low-voltage supply allows use in a refrigerator.
| Speed | 50–300 rpm / 50–250 rpm |
|---|---|
| Orbit diameter | 10 mm / 20 mm |
| Timer | 1 min – 99 h 59 min |
| Max. capacity | 3.0 kg / 2.5 kg |
| Size | 280 × 270 × 110 mm |
| Working temperature | 4–45 ℃ |

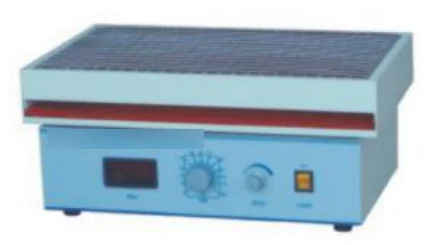

Reciprocating oscillator with mechanical timer for shaking test tubes and bottles.
| Oscillation frequency | 0–300 times/min |
|---|---|
| Amplitude | 20 mm |
| Bottle / tube capacity | 16 × 200 ml, 100 ml × 15, 200 ml × 9 |
| Working load | 20 kg |
| Timing range | 0–120 min |

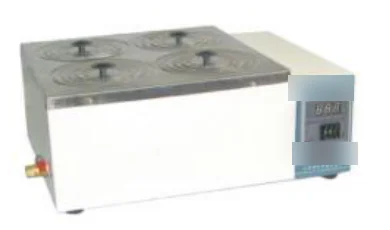

Electrothermal water bath with digital temperature setting and automatic constant-temperature control.
| Temperature range | RT+5 to 99.9 ℃ |
|---|---|
| Accuracy | 1 ℃ |
| Inner tank | Stainless steel |

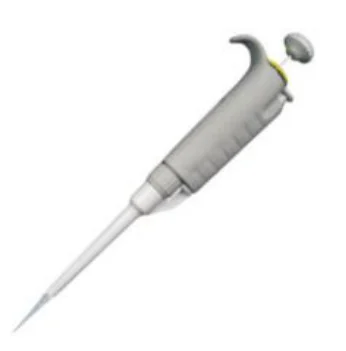

Adjustable-volume single-channel pipette available in ten volume ranges from 0.1 µl to 5000 µl.
| 0.1–2.5 µl | 0.05 µl increment |
|---|---|
| 0.5–10 µl | 0.1 µl increment |
| 2–20 µl | 0.5 µl increment |
| 5–50 µl | 0.5 µl increment |
| 10–100 µl | 1 µl increment |
| 20–200 µl | 1 µl increment |
| 50–200 µl | 1 µl increment |
| 100–1000 µl | 5 µl increment |
| 200–1000 µl | 5 µl increment |
| 1000–5000 µl | 50 µl increment |

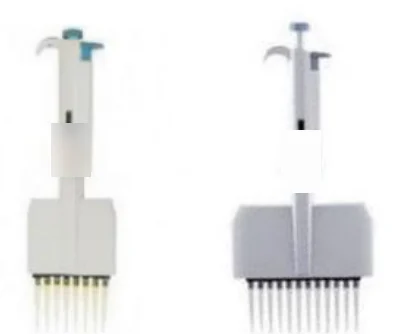

8- or 12-channel adjustable pipette for plate work; the ejector removes all tips at once.
| Channels | 8 or 12 |
|---|

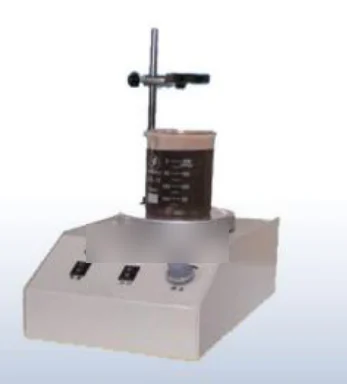

Benchtop magnetic stirrer with heated working plate and adjustable stirring speed.
| Speed range | 0–1400 rpm |
|---|---|
| Working plate diameter | 125 mm |
| Heating power | 300 W |

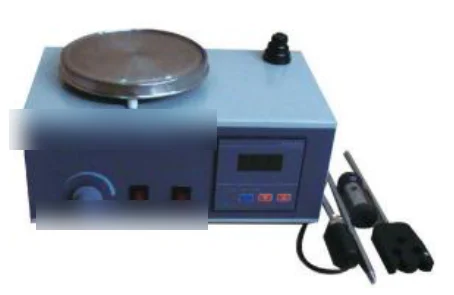

Digital-display magnetic stirrer with stainless steel heating tray, electronic temperature regulation and digital temperature display; quiet, vibration-free and gives good mixing.
| Temperature control | +5–100 °C |
|---|---|
| Temperature accuracy | ±1 °C |
| Heating power | 150 W |
| Stirring power | 3–6 W |
| Stirring speed | 0–1400 r/min |
| Working diameter | 130 mm |
| Stirring capacity | 100–1000 ml |

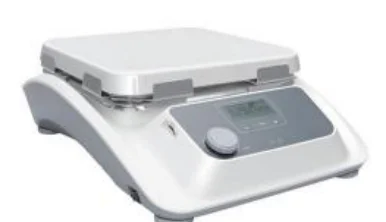

Laboratory hotplate with a 10-inch glass-ceramic work plate and LCD display, reaching up to 500 °C. Supports external temperature control with a PT1000 sensor and records running data to an SD card.
| Work plate | 254 x 254 mm (10 inch), glass ceramic |
|---|---|
| Temperature range | Room temp. to 500 °C, 1 °C increment |
| Control accuracy | ±1 °C (<100 °C), ±1% (>100 °C) |
| Safety temperature | 540 °C |
| Timer | 1 min - 99 h 59 min |
| External sensor | PT1000 (±0.2 °C) |
| Power | 1400 W (heating output 1350 W) |
| Voltage | 100-120 / 200-240 V, 50/60 Hz |
| Dimensions | 328 x 424 x 138 mm |
| Weight | 7.18 kg |

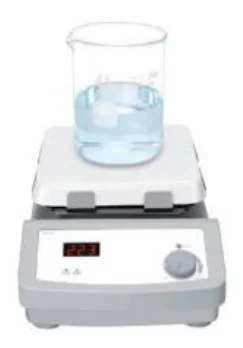

Compact hotplate with a 7-inch glass-ceramic work plate and LED temperature display, heating up to 550 °C, with optional external PT1000 temperature control.
| Work plate | 184 x 184 mm (7 inch), glass ceramic |
|---|---|
| Temperature range | Room temp. to 550 °C, 5 °C increment |
| Plate control accuracy | ±10 °C |
| Safety temperature | 580 °C |
| Display accuracy | ±1 °C |
| External sensor | PT1000 (±0.5 °C) |
| Power | 1010 W (heating 1000 W) |
| Voltage | 100-120 / 200-240 V, 50/60 Hz |
| Dimensions | 215 x 360 x 112 mm |
| Weight | 4.5 kg |
Shaking soil, plant and food samples at a fixed speed and time gives uniform extraction, which is essential for comparable nutrient, residue and contaminant results.
Magnetic stirrers with heating dissolve salts, buffers and culture media quickly and evenly, reducing preparation time and the risk of undissolved material.
Water baths hold samples at a stable temperature for enzyme reactions, thawing, serology and method steps that specify an exact incubation temperature.
Adjustable single and multi-channel pipettes deliver precise volumes for dilutions, ELISA plates and PCR set-up, improving repeatability across operators and runs.
Tell us the methods you run and the number of workstations. ASFAN will recommend a practical bench package and prepare a quotation.
Request a Quote
