Molecular Biology Equipment

DNA-based tools for diagnosis and research

Molecular biology equipment detects and analyses DNA, RNA and proteins. Real-time PCR systems identify and quantify plant viruses, bacteria, fungi, animal diseases and GMO events, while gradient thermal cyclers amplify DNA for genotyping, marker-assisted breeding and sequencing. Horizontal electrophoresis separates DNA fragments, vertical cells and Western blot tanks separate and transfer proteins, and UV transilluminators and gel documentation systems visualise and record the results. Plant protection and quarantine laboratories, veterinary diagnostic centres, breeding programmes, food authenticity laboratories and universities use this equipment. ASFAN supplies, installs and supports it and helps specify complete molecular laboratories.

Molecular Biology Equipment

Real-Time Fluorescence Quantitative PCR System (32-well, dual block)

Real-Time Fluorescence Quantitative PCR System (32-well, dual block)

Real-time PCR instrument for rapid diagnosis of disaster and epidemic disease, detection in pastures, forest farms, breeding farms and water sources, food-safety inspection and quarantine, and biological laboratory research. Up to four optical channels and two independent 16-well blocks let it run two different programs at the same time.

  • Sample capacity32 × 0.2 ml (4 × 8-well, dual block)
  • Excitation wavelengths470 / 523 / 571 / 628 nm (4-channel version)
  • Emission wavelengths525 / 571 / 612 / 692 nm (4-channel version)
  • Calibrated dyesFAM/SYBR Green I, HEX/VIC/JOE/TET, ROX, CY5
Features & full specifications

Key features

  • Up to four fluorescence channels and double 16-well blocks; runs two programs simultaneously
  • Small size, light weight, easy to carry
  • Analysis software for quantitative analysis, melting curve, genotyping and relative quantification
  • 20 GB flash memory stores 40,000 experiment records
  • 32 bundled optical fibers collect fluorescence from the side for a stronger signal
  • Black reaction block reduces background noise
  • Electromagnetic lid lock prevents the hot lid opening accidentally
  • Constant-current control extends Peltier life and improves temperature accuracy
  • Over-current, over-temperature and power-off data recovery protection
  • Optional USB thermal printer for reports

Available configurations

  • 2-channel version: FAM/SYBR Green I and HEX/VIC/JOE/TET (excitation 470/523 nm, emission 525/571 nm)
  • 4-channel version: adds ROX and CY5 (excitation 470/523/571/628 nm, emission 525/571/612/692 nm)

Technical specifications

Sample capacity32 × 0.2 ml (4 × 8-well, dual block)
Excitation wavelengths470 / 523 / 571 / 628 nm (4-channel version)
Emission wavelengths525 / 571 / 612 / 692 nm (4-channel version)
Calibrated dyesFAM/SYBR Green I, HEX/VIC/JOE/TET, ROX, CY5
Max. ramp rate5 ℃/s
Temperature controlCustomized Peltier rated for 1,000,000 cycles; block/tube mode
Temperature range0–100 ℃ (resolution 0.1 ℃)
Uniformity / accuracy±0.25 ℃ / ±0.25 ℃
Dynamic range / sensitivity1–10^10 copies / 1 copy
Power220 VAC 50 Hz; DC15V 255 W
Request a quote
Portable Real-Time PCR System (16-well, dual block)

Portable Real-Time PCR System (16-well, dual block)

Compact real-time PCR instrument with two independent 8-well blocks for field and laboratory detection in pastures, forest farms, breeding farms and water sources, food-safety inspection and biological research. It can run on battery power for quick on-site inspection.

  • Sample capacity16 × 0.2 ml (2 × 8-well, dual block)
  • Excitation wavelengths470 nm / 470 + 523 nm
  • Emission wavelengths525 nm / 525 + 571 nm
  • Max. ramp rate6 ℃/s
Features & full specifications

Key features

  • Double channels and double 8-well blocks; runs two programs at the same time
  • Small size, light weight, easy to carry
  • Quantitative analysis, melting curve and genotyping software
  • 20 GB flash memory stores 40,000 experiment records
  • Side-scan detection with short detection distance for a stable fluorescence signal
  • Black reaction block reduces background noise
  • Electromagnetic lid lock and front shutdown button
  • Battery power supported for quick and field inspection

Available configurations

  • Single-channel version: FAM/SYBR Green I
  • Dual-channel version: FAM/SYBR Green I and HEX/VIC/JOE/TET

Technical specifications

Sample capacity16 × 0.2 ml (2 × 8-well, dual block)
Excitation wavelengths470 nm / 470 + 523 nm
Emission wavelengths525 nm / 525 + 571 nm
Max. ramp rate6 ℃/s
Temperature range0–100 ℃ (resolution 0.1 ℃)
Uniformity / accuracy±0.25 ℃ / ±0.25 ℃
Hot lid temperature30–110 ℃ (adjustable, default 105 ℃)
Dynamic range / sensitivity1–10^10 copies / 1 copy
Control7-inch color TFT touch screen, can be connected to computer; USB2.0
Power220 VAC 50 Hz; DC15V 255 W
Request a quote

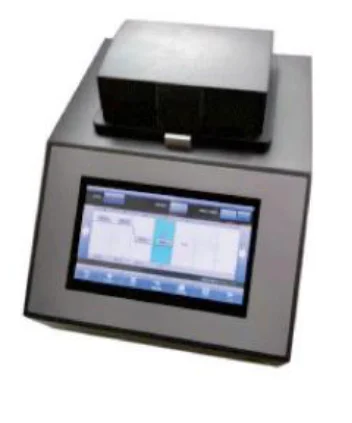

PCR Amplification Instrument (Gradient Thermal Cycler)

PCR Amplification Instrument (Gradient Thermal Cycler)

Thermal cycler that replicates target DNA in vitro through denaturation, annealing and extension cycles. Used in molecular biology, medicine, food industry, forensic science, biotechnology, environmental science, microbiology, clinical diagnosis, epidemiology, gene detection, cloning and expression.

  • Sample block0.2 ml × 96 / 0.5 ml × 96 / 0.2 ml × 96 + 0.5 ml × 77, in-situ tray
  • Block temperature0–100 ℃
  • Heating / cooling speed4 ℃/s / 4 ℃/s
  • Temperature uniformity≤ ±0.2 ℃
Features & full specifications

Key features

  • Semiconductor heating and cooling
  • Fast temperature change rate saves experiment time
  • Gradient function up to 30 ℃ span (96-well version)
  • Hot-start function
  • Adjustable hot-lid pressure prevents evaporation and fits various PCR tubes
  • 7-inch touch screen with curve graphics display
  • Power-failure protection and automatic hot-lid closing
  • USB flash disk interface for unlimited program download
  • Stores 20,000 programs

Available configurations

  • 32-well block (no gradient function)
  • 96-well block with gradient

Technical specifications

Sample block0.2 ml × 96 / 0.5 ml × 96 / 0.2 ml × 96 + 0.5 ml × 77, in-situ tray
Block temperature0–100 ℃
Heating / cooling speed4 ℃/s / 4 ℃/s
Temperature uniformity≤ ±0.2 ℃
Temperature accuracy≤ ±0.1 ℃ (30–100 ℃)
Gradient range30–99.9 ℃, max. 30 ℃ difference, 12 columns
Gradient accuracy / uniformity≤ ±0.1 ℃ / ≤ ±0.2 ℃
Hot lid temperature30–105 ℃ adjustable
InterfaceUSB2.0, RS232; 7-inch touch screen
Input power600 W
Request a quote

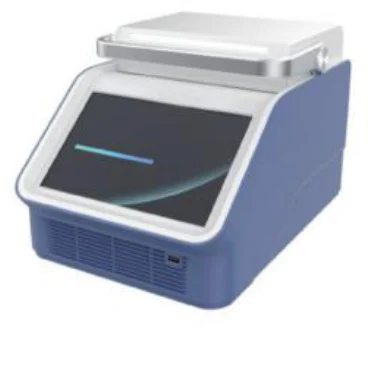

Wi-Fi Thermal Cycler (Gradient PCR)

Wi-Fi Thermal Cycler (Gradient PCR)

Thermal cycler with an anodized reinforced aluminium block, fast ramping and a self-adapting pressure hot lid. Built-in Wi-Fi lets one computer or phone control multiple PCR machines, with email notification when a run ends.

  • Capacity96 × 0.2 ml / 384-well / 6 × 16 × 0.2 ml
  • Temperature range0–105 ℃
  • Max. ramp rate5–8 ℃/s depending on version
  • Uniformity / accuracy≤ ±0.2 ℃ / ≤ ±0.1 ℃
Features & full specifications

Key features

  • Anodized aluminium block for rapid heat conduction and corrosion resistance
  • Max. ramping rate 8 ℃/s
  • Self-adapting pressure hot lid closes and tightens in one step
  • Front-to-back airflow allows units to be placed side by side
  • 11 built-in standard program templates
  • One-click incubation for denaturation, enzyme cutting/enzyme-link and ELISA
  • Automatic restart after power failure
  • USB storage and USB mouse control
  • Wi-Fi control of multiple units; email notification

Available configurations

  • 96 × 0.2 ml, normal gradient 1–42 ℃, 5 ℃/s
  • 96 × 0.2 ml for tubes, strips, half/full-skirt and no-skirt plates, normal gradient, 6 ℃/s
  • 384-well PCR microplate, normal gradient, 5 ℃/s
  • 6 × 16 × 0.2 ml, dynamic gradient (six zones, 0.1–5 ℃ each), 6 ℃/s
  • 96 × 0.2 ml, two-dimensional gradient (horizontal 1–30 ℃, vertical 1–24 ℃), 8 ℃/s

Technical specifications

Capacity96 × 0.2 ml / 384-well / 6 × 16 × 0.2 ml
Temperature range0–105 ℃
Max. ramp rate5–8 ℃/s depending on version
Uniformity / accuracy≤ ±0.2 ℃ / ≤ ±0.1 ℃
Display resolution0.1 ℃
Gradient range30–105 ℃
Hot lid temperature30–115 ℃
Programs20,000 + (USB flash)
Max. steps / cycles30–40 / 100
Power supply100–240 VAC, 50/60 Hz, 600 W (1200 W two-dimensional gradient version)
Request a quote

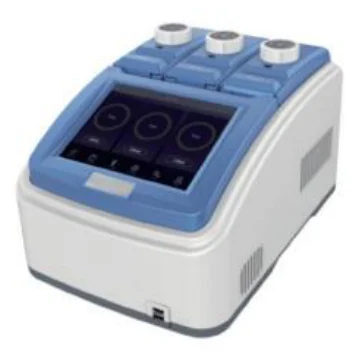

Three-Block Thermal Cycler

Three-Block Thermal Cycler

Thermal cycler with three independently controlled 32-well blocks that can run three different PCR programs at the same time. Six Peltier units form three temperature-control circuits; Wi-Fi allows control of several machines from a mobile app or PC.

  • Capacity3 × (32 × 0.2 ml)
  • Temperature range0–100 ℃
  • Heating / cooling rate5 ℃/s / 4 ℃/s
  • Uniformity / accuracy≤ ±0.3 ℃ / ≤ ±0.2 ℃
Features & full specifications

Key features

  • 6 long-life Peltier units in 3 temperature-control circuits
  • 3 independent blocks run 3 different programs (gradient version: 3 gradient programs)
  • Max. ramping rate 5 ℃/s
  • Stepless adjustable pressure-protected hot lid
  • 11 built-in program templates; memory for 10,000 PCR files
  • Automatic restart after power failure; GLP report records every step
  • Built-in Wi-Fi for mobile app or PC control; email alert when finished

Available configurations

  • Standard (no gradient)
  • Gradient version

Technical specifications

Capacity3 × (32 × 0.2 ml)
Temperature range0–100 ℃
Heating / cooling rate5 ℃/s / 4 ℃/s
Uniformity / accuracy≤ ±0.3 ℃ / ≤ ±0.2 ℃
Gradient range / spread30–100 ℃ / 1–30 ℃ (gradient version)
Hot lid temperature30–110 ℃, stepless adjustable height
Programs10,000 + (USB flash)
Max. steps / cycles30 / 100
CommunicationUSB2.0, LAN, Wi-Fi
Power supply85–264 VAC, 47–63 Hz, 600 W
Request a quote

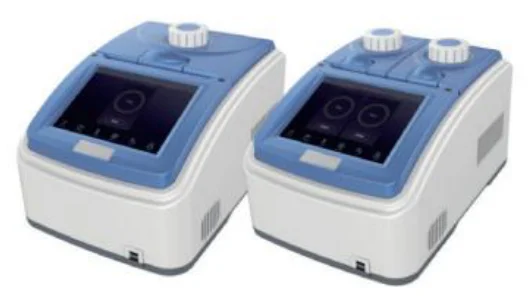

Touch-Screen Dual-Block Gradient Thermal Cycler

Touch-Screen Dual-Block Gradient Thermal Cycler

Touch-screen thermal cycler with eight Peltier units forming four temperature zones, allowing double-block gradient operation and two independent programs at once. Wi-Fi lets one machine control several PCR units via mobile app or PC.

  • Temperature range0–100 ℃
  • Heating / cooling rate5 ℃/s / 4 ℃/s
  • Uniformity / accuracy≤ ±0.2 ℃ / ≤ ±0.1 ℃
  • Gradient range / spread30–100 ℃ / 1–30 ℃
Features & full specifications

Key features

  • 8 long-life Peltier units in 4 temperature zones; double-block gradient
  • Two independently controlled blocks run 2 different programs
  • Anodized aluminium block; max. ramping rate 5 ℃/s
  • Stepless adjustable pressure-protected hot lid
  • 11 program templates; memory for 10,000 PCR files
  • GLP report, USB data export and USB mouse control
  • Built-in Wi-Fi; email alert when finished

Available configurations

  • 96 × 0.2 ml
  • 96 × 0.2 ml + 77 × 0.5 ml
  • Double 48 × 0.2 ml
  • 48 × 0.2 ml + 30 × 0.5 ml
  • 384-well

Technical specifications

Temperature range0–100 ℃
Heating / cooling rate5 ℃/s / 4 ℃/s
Uniformity / accuracy≤ ±0.2 ℃ / ≤ ±0.1 ℃
Gradient range / spread30–100 ℃ / 1–30 ℃
Gradient uniformity / accuracy≤ ±0.2 ℃ / ≤ ±0.2 ℃
Hot lid temperature30–110 ℃
Programs10,000 + (USB flash)
Max. steps / cycles30 / 100
CommunicationUSB2.0, LAN, Wi-Fi
Power supply85–264 VAC, 47–63 Hz, 600 W
Request a quote

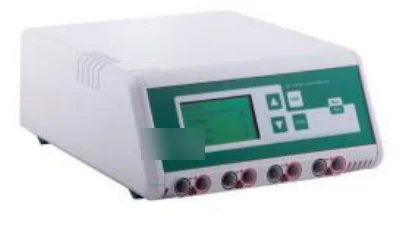

Universal Electrophoresis Power Supply (600 V)

Universal Electrophoresis Power Supply (600 V)

Microprocessor-controlled electrophoresis power supply with constant voltage, current or power output and storage for 10 methods.

  • Output typeConstant voltage, current or power
  • Output range10–600 V, 1–500 mA, 1–300 W
  • Increment1 V, 1 mA, 1 W
  • Timer range1 min – 99 h 59 min
Features & full specifications

Key features

  • Molded shell, touch keys, dual-core microprocessor control
  • Shows preset and actual output values at the same time
  • Stores 10 electrophoresis methods; automatic memory
  • Standard and timing operation modes
  • Detects no-load, overload, short circuit, rapid resistance change, ground leak and overheating

Technical specifications

Output typeConstant voltage, current or power
Output range10–600 V, 1–500 mA, 1–300 W
Increment1 V, 1 mA, 1 W
Timer range1 min – 99 h 59 min
DisplayLCD with backlight
Output jacksFour sets
Request a quote

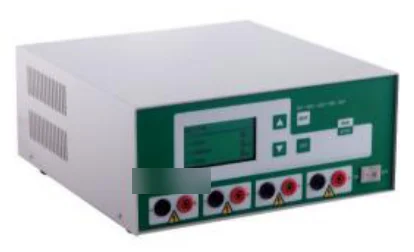

High-Voltage Electrophoresis Power Supply (3000 V)

High-Voltage Electrophoresis Power Supply (3000 V)

High-voltage power supply for electrophoresis with constant voltage, current or power output, 10 stored methods and a temperature-control operation mode.

  • Output typeConstant voltage, current or power
  • Output range20–3000 V, 1–200 mA, 1–200 W
  • Increment1 V, 1 mA, 1 W
  • Timer range1 min – 99 h 59 min
Features & full specifications

Key features

  • Touch keys, dual-core microprocessor control
  • Shows preset and actual output values at the same time
  • Stores 10 electrophoresis methods; automatic memory
  • Temperature-control operation, range RT+10 ℃ to 65 ℃
  • Standard, timing and temperature-control modes
  • Detects no-load, overload, short circuit, rapid resistance change, ground leak and overheating

Technical specifications

Output typeConstant voltage, current or power
Output range20–3000 V, 1–200 mA, 1–200 W
Increment1 V, 1 mA, 1 W
Timer range1 min – 99 h 59 min
DisplayLCD with backlight
Output jacksFour sets
Request a quote

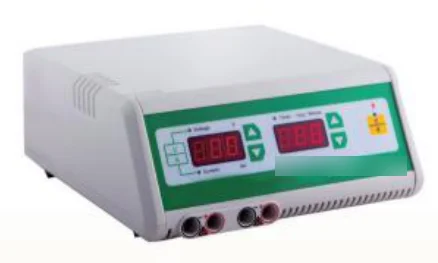

Basic Electrophoresis Power Supply (600 V)

Basic Electrophoresis Power Supply (600 V)

Entry-level electrophoresis power supply with constant voltage or current output and LED display.

  • Output typeConstant voltage, current
  • Output range5–600 V, 1–200 mA, max. 120 W
  • Increment1 V, 1 mA
  • Timer range1 min – 9 h 59 min
Features & full specifications

Key features

  • Molded shell, touch keys, microprocessor control
  • Automatic memory function
  • Standard and timing operation modes
  • Automatic detection of no-load and overload

Technical specifications

Output typeConstant voltage, current
Output range5–600 V, 1–200 mA, max. 120 W
Increment1 V, 1 mA
Timer range1 min – 9 h 59 min
DisplayLED
Output jacksTwo sets
Request a quote

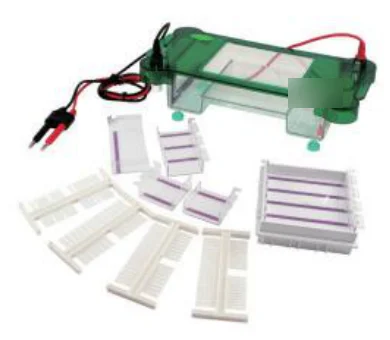

Horizontal Electrophoresis Cell (Mini)

Horizontal Electrophoresis Cell (Mini)

Horizontal gel electrophoresis tank with several gel tray sizes for routine nucleic-acid gels.

  • Gel size (W×L)60×60 mm; 120×60 mm; 60×120 mm; 120×120 mm
  • Sample wells3, 6, 8, 11, 13, 18, 25
  • Buffer volume~550 ml
  • Dimensions (L×W×H)300×160×75 mm
Features & full specifications

Key features

  • Large buffer volume keeps cooling effective and pH stable during the run
  • Unfolded electrodes make repair and parts replacement easy
  • Tray with background color for easier sample loading
  • Transparent lid prevents evaporation and electrical leakage
  • Power switches off automatically when the lid is removed

Technical specifications

Gel size (W×L)60×60 mm; 120×60 mm; 60×120 mm; 120×120 mm
Sample wells3, 6, 8, 11, 13, 18, 25
Buffer volume~550 ml
Dimensions (L×W×H)300×160×75 mm
Net weight1.1 kg
Request a quote

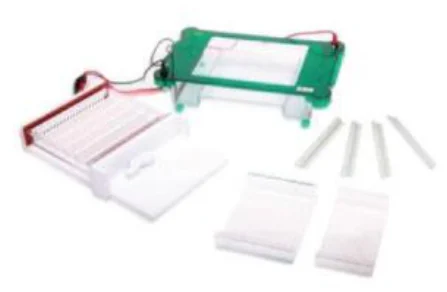

Horizontal Electrophoresis Cell (Large)

Horizontal Electrophoresis Cell (Large)

Larger horizontal gel electrophoresis tank with special gel casting that prevents leakage.

  • Gel size (W×L)200×200 mm; 200×150 mm; 200×100 mm
  • Sample wells17, 22, 36, 44
  • Buffer volume~1800 ml
  • Dimensions (L×W×H)397×230×93 mm
Features & full specifications

Key features

  • Large buffer volume keeps cooling effective and pH stable during the run
  • Unfolded electrodes make repair and parts replacement easy
  • Special gel casting prevents gel leakage; simple operation
  • Transparent lid prevents evaporation and electrical leakage
  • Power switches off automatically when the lid is removed

Technical specifications

Gel size (W×L)200×200 mm; 200×150 mm; 200×100 mm
Sample wells17, 22, 36, 44
Buffer volume~1800 ml
Dimensions (L×W×H)397×230×93 mm
Net weight3.3 kg
Request a quote

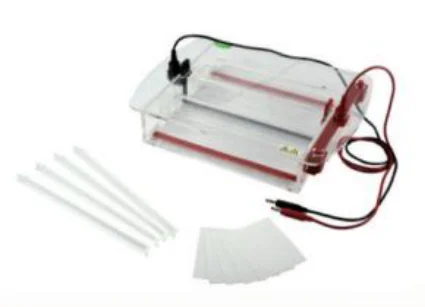

Horizontal Electrophoresis Cell (Double-Bridge, Cooled)

Horizontal Electrophoresis Cell (Double-Bridge, Cooled)

Double-bridge horizontal electrophoresis tank with a cooling device for constant-temperature runs and an adjustable rod to suit different medium lengths.

  • Bridge size (W×L)70×250 mm ×2; 90×250 mm ×2
  • Buffer volume~1000 ml
  • Dimensions (L×W×H)350×260×65 mm
  • Net weight1.6 kg
Features & full specifications

Key features

  • Double-bridge design
  • Cooling device keeps electrophoresis at constant temperature
  • Adjustable rod position sets the electrophoretic distance
  • Unfolded electrodes for easy repair
  • Auto switch-off when the lid is removed

Technical specifications

Bridge size (W×L)70×250 mm ×2; 90×250 mm ×2
Buffer volume~1000 ml
Dimensions (L×W×H)350×260×65 mm
Net weight1.6 kg
Request a quote

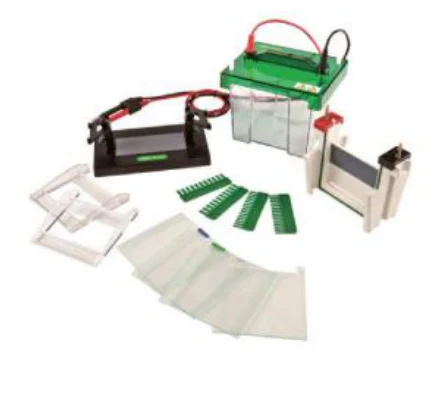

Mini Vertical Electrophoresis Cell (1–2 gels)

Mini Vertical Electrophoresis Cell (1–2 gels)

Mini vertical (SDS-PAGE) electrophoresis cell; glass plates install in 15 seconds and gels are cast in place without moving the glass.

  • Glass plate size (W×L)100×100 mm
  • Gel size (W×L)82×88 mm
  • Gel thickness0.75, 1.0, 1.5 mm
  • Gel amount1–2 pieces
Features & full specifications

Key features

  • Glass plate installation in 15 seconds without knobs
  • Gel cast in its running position; gel preparation visible through both glasses
  • High-transparency injection-molded polycarbonate: impact, heat and corrosion resistant
  • Safety cover with open button; colored background for easy sample loading
  • Large buffer volume for cooling and stable pH
  • Auto switch-off when the lid is removed

Technical specifications

Glass plate size (W×L)100×100 mm
Gel size (W×L)82×88 mm
Gel thickness0.75, 1.0, 1.5 mm
Gel amount1–2 pieces
Sample wells11 or 15 wells (each thickness)
Buffer volume~750 ml
Dimensions (L×W×H)150×120×115 mm
Net weight1.5 kg
Request a quote

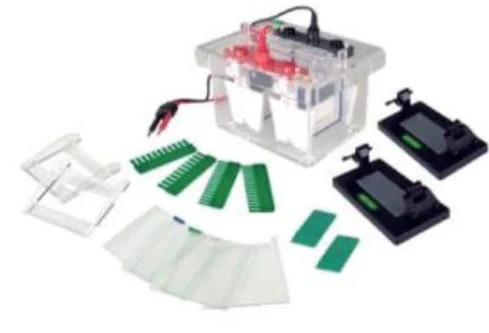

Vertical Electrophoresis Cell (1–4 gels, multi-casting)

Vertical Electrophoresis Cell (1–4 gels, multi-casting)

Vertical electrophoresis cell with two gel castings that can cast 1–4 gels at the same time, either in the original position or with a multi-casting device.

  • Glass plate size (W×L)100×100 mm
  • Gel size (W×L)82×88 mm
  • Gel thickness1.0, 1.5 mm
  • Gel amount1–4 pieces
Features & full specifications

Key features

  • Casts 1–4 gels at once; in-place or multi-casting methods
  • Glass plate installation in 15 seconds without knobs
  • Fast set-up and leak-free operation
  • Safety cover with open button; colored background for sample loading
  • Large buffer volume for cooling and stable pH
  • Auto switch-off when the lid is removed

Technical specifications

Glass plate size (W×L)100×100 mm
Gel size (W×L)82×88 mm
Gel thickness1.0, 1.5 mm
Gel amount1–4 pieces
Sample wells11 or 15 wells
Buffer volume~1000 ml
Dimensions (L×W×H)220×170×120 mm
Net weight2.5 kg
Request a quote

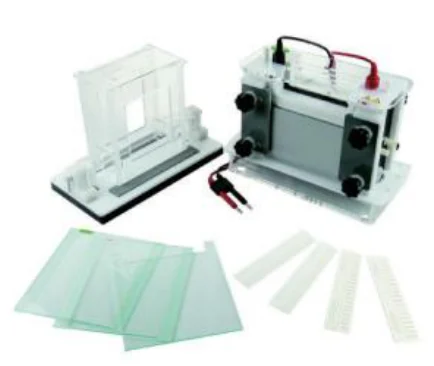

Large Vertical Electrophoresis Cell (Protein / DGGE)

Large Vertical Electrophoresis Cell (Protein / DGGE)

Vertical electrophoresis cell intended for protein purification and analysis, two-dimensional electrophoresis, DGGE and preparative gel electrophoresis.

  • Gel size (W×L)173×195 mm
  • Gel thickness1, 1.5 mm
  • Comb wells21, 35
  • Gel capacity2
Features & full specifications

Key features

  • Aluminium plates give even heat dissipation and stable pH
  • Uniform electric field for clear, straight bands
  • Modular double hinged core cassettes matched with the casting base
  • Retractable connectors fit most power supplies
  • Can be connected to an external constant-temperature circulator
  • Power cuts off automatically when the lid is removed

Technical specifications

Gel size (W×L)173×195 mm
Gel thickness1, 1.5 mm
Comb wells21, 35
Gel capacity2
Buffer requirement2200 ml
Request a quote

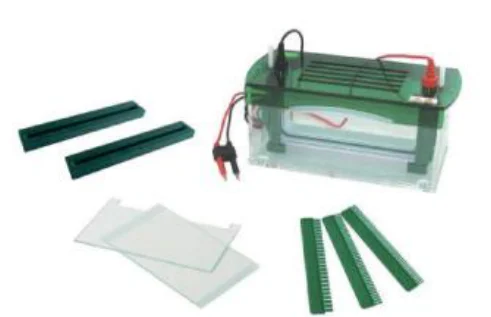

Wide-Format Vertical Electrophoresis Cell

Wide-Format Vertical Electrophoresis Cell

Vertical slab-gel electrophoresis cell with wide glass plates for high sample numbers.

  • Glass plate size (W×L)216×110 mm
  • Gel size (W×L)186×95 mm
  • Gel thickness1.0 mm
  • Gel amount1–2 pieces
Features & full specifications

Key features

  • Glass plate installation in 15 seconds without knobs
  • Modular gel-making device casts several slab gels at the same time
  • Safety cover with open button
  • Large buffer volume for cooling and stable pH
  • Auto switch-off when the lid is removed

Technical specifications

Glass plate size (W×L)216×110 mm
Gel size (W×L)186×95 mm
Gel thickness1.0 mm
Gel amount1–2 pieces
Sample wells25, 40, 52 (1.0 mm)
Buffer volume~1800 ml
Dimensions (L×W×H)280×140×135 mm
Net weight3.2 kg
Request a quote

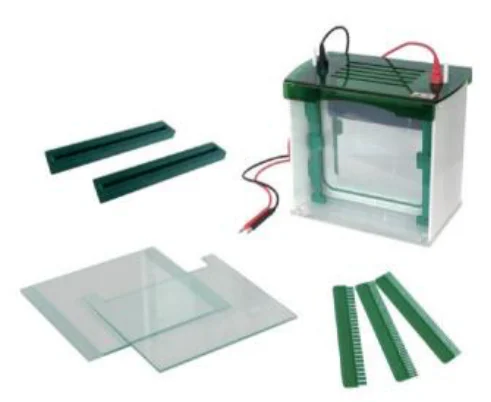

Wide-Format Vertical Electrophoresis Cell (Tall Gel)

Wide-Format Vertical Electrophoresis Cell (Tall Gel)

Tall-gel version of the wide-format vertical electrophoresis cell for longer separation distance.

  • Glass plate size (W×L)216×220 mm
  • Gel size (W×L)186×205 mm
  • Gel thickness1.0 mm
  • Gel amount1–2 pieces
Features & full specifications

Key features

  • Glass plate installation in 15 seconds without knobs
  • Modular gel-making device casts several slab gels at the same time
  • Safety cover with open button
  • Large buffer volume for cooling and stable pH
  • Auto switch-off when the lid is removed

Technical specifications

Glass plate size (W×L)216×220 mm
Gel size (W×L)186×205 mm
Gel thickness1.0 mm
Gel amount1–2 pieces
Sample wells25, 40, 52 (1.0 mm)
Buffer volume~3500 ml
Dimensions (L×W×H)280×140×250 mm
Net weight5.6 kg
Request a quote

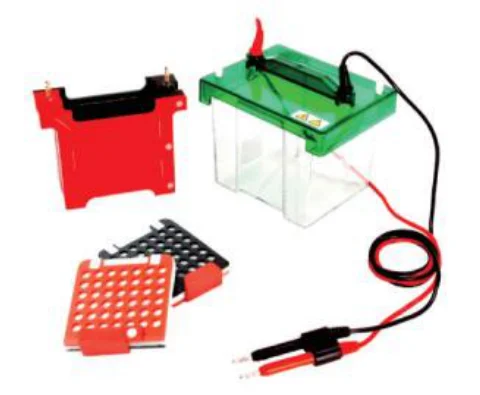

Tank Transfer (Western Blot) Cell

Tank Transfer (Western Blot) Cell

Wet tank-transfer cell for blotting gels onto membranes; short electrode spacing reduces transfer time. It can be used on its own or as a module in the buffer tank of the mini vertical electrophoresis cell.

  • Transfer area (W×L)216×110 mm
Features & full specifications

Key features

  • Small electrode spacing greatly saves transfer time
  • Color-marked splint ensures the gel is placed correctly in the inner core
  • Unfolded electrodes for easy repair and parts replacement
  • Transparent lid prevents evaporation and electrical leakage
  • Auto switch-off when the lid is removed
  • Standalone or as a module with the mini vertical cell buffer tank

Technical specifications

Transfer area (W×L)216×110 mm
Request a quote
UV Transilluminator

UV Transilluminator

Benchtop UV transilluminator for viewing gels, with a transparent UV protective screen that opens to any angle.

  • Transmission size (W×L)200×150 mm
  • UV wavelength302 nm
  • Transmission UV lamp power8 W
  • Dimensions (L×W×H)325×265×150 mm
Features & full specifications

Key features

  • High-transparency UV protective screen opens to any angle
  • UV filter glass and quartz UV lamp: long service life, uniform light

Technical specifications

Transmission size (W×L)200×150 mm
UV wavelength302 nm
Transmission UV lamp power8 W
Dimensions (L×W×H)325×265×150 mm
Weight4.6 kg
Request a quote
UV Analyzer Cabinet (Transmission + Reflectance)

UV Analyzer Cabinet (Transmission + Reflectance)

Enclosed UV gel viewing cabinet that needs no darkroom, with transmission and reflectance UV and a door for cutting gels.

  • Transmission size (W×L)200×150 mm
  • Transmission UV wavelength / power302 nm / 8 W
  • Reflectance UV wavelength254, 365 nm
  • Reflectance UV lamp power254 nm (11 W), 365 nm (11 W)
Features & full specifications

Key features

  • No darkroom needed; usable in any lighting
  • Opening for gel cutting
  • UV filter glass and quartz UV lamp: long service life, uniform light

Technical specifications

Transmission size (W×L)200×150 mm
Transmission UV wavelength / power302 nm / 8 W
Reflectance UV wavelength254, 365 nm
Reflectance UV lamp power254 nm (11 W), 365 nm (11 W)
Dimensions (L×W×H)435×295×490 mm
Weight16.9 kg
Request a quote
Gel Documentation System

Gel Documentation System

Gel imaging cabinet with a low-lux high-resolution CCD camera and 6× zoom lens for capturing and analysing electrophoresis gels; detects EB-stained double-strand DNA below 20 pg.

  • CameraLow-illumination, high-resolution digital CCD
  • Effective pixels / resolution2560 × 1920 / 5.0 megapixels
  • Pixel size / depth5.4 × 5.4 µm / 10 bit
  • Signal-to-noise ratio≥ 56 dB
Features & full specifications

Key features

  • Low-lux, high-resolution CCD for dim bands and real-time browsing
  • 6× zoom lens; zoom, focus and aperture controlled from panel or computer
  • Center-position indicator for gel placement
  • UV light shuts off automatically when the door opens; 15-minute timed shut-down
  • Drawer-style gel platform for observing and cutting gels
  • Conversion plate turns UV light into white light
  • Multi-layer gel filter reduces background noise

Technical specifications

CameraLow-illumination, high-resolution digital CCD
Effective pixels / resolution2560 × 1920 / 5.0 megapixels
Pixel size / depth5.4 × 5.4 µm / 10 bit
Signal-to-noise ratio≥ 56 dB
Zoom lensF=1:1.2, 2/3 inch, 6× zoom
UV transmission area (W×L)250×200 mm (302 nm)
Reflectance UV254 nm (11 W), 365 nm (11 W)
SensitivityEB-stained double-strand DNA below 20 pg
Dimensions (L×W×H)470×405×820 mm
Weight29.0 kg
Request a quote

Pathogen detection and quarantine

Real-time PCR identifies plant and animal pathogens quickly and specifically, supporting border inspection, certification of planting material and rapid response to outbreaks.

Variety identity and breeding

DNA markers amplified by PCR and separated by electrophoresis confirm variety identity, seed purity and parentage, and help breeders select for target traits earlier.

Food authenticity and GMO testing

Molecular methods detect species substitution, adulteration and genetically modified ingredients in food and feed, supporting labelling rules and consumer protection.

Protein analysis

Vertical electrophoresis and Western blot transfer separate and identify proteins, supporting research on disease resistance, stress responses and vaccine development.

Frequently Asked Questions

What is the difference between real-time PCR and a thermal cycler?

A thermal cycler amplifies DNA, and the product is then checked by electrophoresis. Real-time PCR measures fluorescence during amplification, giving quantitative results and faster diagnosis without opening the tubes afterwards.

Why choose a gradient thermal cycler?

A gradient block runs different annealing temperatures across the block in one run, so new primer pairs can be optimised quickly instead of testing each temperature separately.

What else does a PCR laboratory need?

Beyond the PCR system, plan for separate clean areas, a biological safety cabinet or clean bench, microcentrifuges, pipettes, cold storage for reagents and electrophoresis with gel documentation. ASFAN can help specify the full set-up.

Set up your molecular laboratory

Tell us your target pathogens, assays and sample numbers. ASFAN will recommend PCR, electrophoresis and imaging equipment and prepare a quotation.

Request a Quote
Chat with us on WhatsApp
