Controlled Environment Agriculture

Plant Growth & Research Rooms

Walk-in rooms engineered for a specific research purpose, with programmable temperature, humidity, light and airflow and optional irrigation, CO2 and imaging systems.

Request a Quote
Plant Growth & Research Rooms

Purpose-built rooms for plant science

Plant growth and research rooms are insulated walk-in facilities that reproduce a defined climate for large numbers of plants. Each room type is configured for a task: germinating seed, raising seedlings, accelerating breeding generations, simulating heat, frost or drought, rearing insects, culturing plant tissue, studying pathogens, vernalising crops, growing in vertical plant factories or conserving germplasm. Universities, agricultural research centres, breeding companies, gene banks and ministries use them for work that the field cannot deliver reliably. ASFAN supplies, installs and supports these rooms and helps specify the layout and systems.

Plant Growth Room Types

Walk-in Plant Growth Room

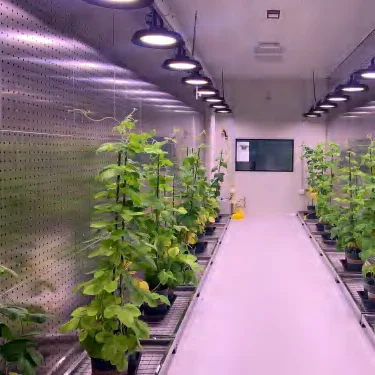

Walk-in Plant Growth Room

A general-purpose walk-in room for growing whole plants under controlled temperature, humidity and light. It suits physiology experiments, variety evaluation, pot trials and teaching, where many plants must be grown at once under uniform conditions that can be repeated from one season to the next.

  • Temperature10–40 °C
  • Humidity45–90 % RH
  • Light0–30,000 lx
Key features
  • Multi-tier racks with adjustable shelf height
  • High-intensity lighting up to 30,000 lx
  • Programmable day and night cycles
  • Uniform airflow across all shelves
Request a quote

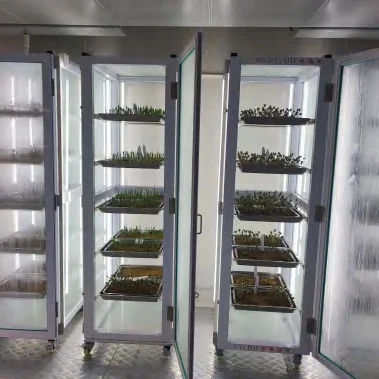

Seed Germination Room

Seed Germination Room

A room dedicated to germination tests and seed vigour studies on a larger scale than a cabinet incubator. Seed laboratories, gene banks and breeding programmes use it to run many replicates at stable temperature and humidity, with moderate lighting for species that need light to germinate.

  • Temperature10–30 °C
  • Humidity50–90 % RH
  • Light0–5,000 lx
Key features
  • Stable temperature for standard germination tests
  • Humidity held between 50 and 90 % RH
  • Moderate lighting up to 5,000 lx
  • Shelving for trays and germination boxes
Request a quote

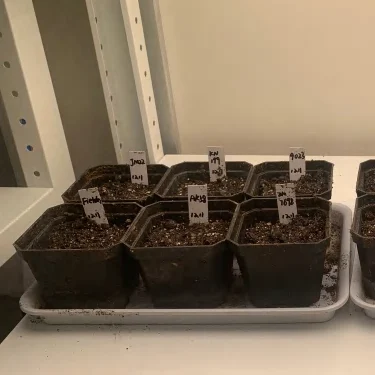

Speed Breeding Room

Speed Breeding Room

A room that shortens the time between generations by combining long photoperiods, intense light and optimised temperature. Breeding programmes use it to advance wheat, barley, legumes and other crops through several generations a year, accelerating line fixation and variety development.

  • Temperature10–35 °C
  • Humidity≥ 80 % RH
  • Light0–30,000 lx
Key features
  • Extended photoperiods with intense lighting
  • Light intensity up to 30,000 lx
  • High humidity of 80 % RH and above
  • Programmable temperature for each growth stage
Request a quote

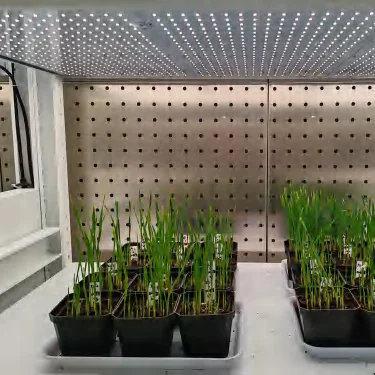

Seedling Nursery Growth Room

Seedling Nursery Growth Room

A nursery room for raising uniform, healthy seedlings and transplants under controlled conditions. It serves vegetable and fruit nurseries, forestry and afforestation projects and research teams that need consistent planting material, independent of outdoor heat or cold.

  • Temperature10–30 °C
  • Humidity50–90 % RH
  • Light0–15,000 lx
Key features
  • Vertical racks for seedling trays
  • Lighting up to 15,000 lx
  • Humidity control for rooting and hardening
  • Optional automated irrigation
Request a quote

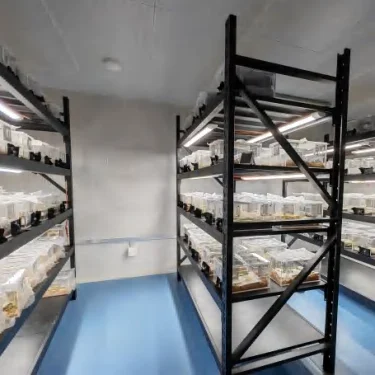

Insect Rearing & Entomology Room

Insect Rearing & Entomology Room

A room for rearing insects and studying their biology under defined temperature, humidity and photoperiod. Entomology laboratories use it to maintain colonies of pests and beneficial insects, mass-rear natural enemies for biological control and test pest behaviour and development.

  • Temperature15–30 °C
  • Humidity45–85 % RH
  • Light0–10,000 lx
Key features
  • Stable conditions for continuous insect colonies
  • Photoperiod control up to 10,000 lx
  • Humidity between 45 and 85 % RH
  • Easy-clean interior surfaces
Request a quote
Stress Simulation Research Room

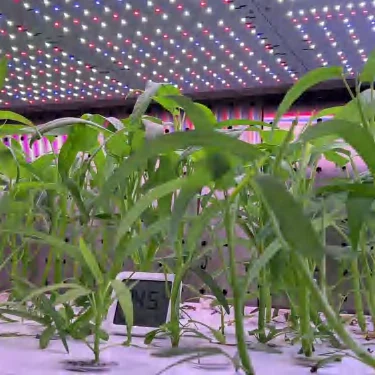

Stress Simulation Research Room

A room that reproduces extreme conditions, from frost well below freezing to intense heat, so researchers can study how crops tolerate abiotic stress. It supports screening for heat, cold and drought tolerance, a priority for breeding varieties adapted to changing and harsh climates.

  • Temperature−18 to 45 °C
  • Humidity30–90 % RH
  • LightCustomizable
Key features
  • Wide temperature range from −18 to 45 °C
  • Programmable stress events and recovery periods
  • Customizable lighting
  • Optional imaging for stress response tracking
Request a quote

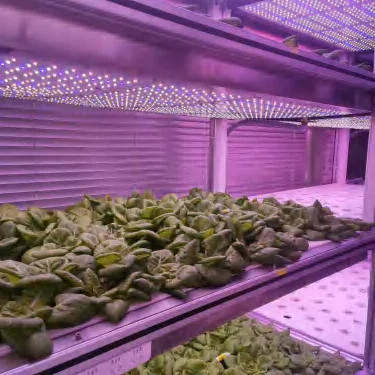

Controlled Environment Climate Room

Controlled Environment Climate Room

A versatile climate room with wide ranges of temperature, humidity up to saturation and strong lighting. It suits institutions that run different experiments in sequence, such as climate simulation, plant–environment interaction studies and trials that recreate the conditions of other regions.

  • Temperature15–40 °C
  • Humidity40–100 % RH
  • Light0–30,000 lx
Key features
  • Humidity control from 40 % up to 100 % RH
  • Lighting up to 30,000 lx
  • Programmable climate profiles
  • Optional CO2 control
Request a quote
Plant Tissue Culture Room

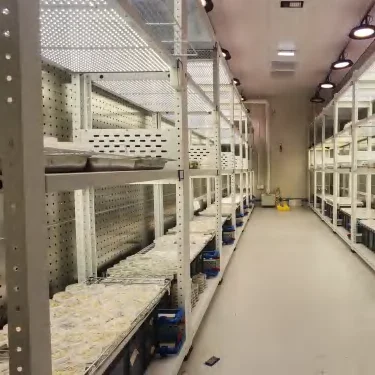

Plant Tissue Culture Room

A clean growth room for in-vitro cultures of plant cells, tissues and plantlets in jars and tubes. Micropropagation laboratories and research centres use it to multiply disease-free planting material, conserve rare species and support date palm, banana and potato propagation programmes.

  • Temperature4–35 °C
  • HumidityNot specified
  • Light0–2,000 lx
Key features
  • Low-intensity lighting up to 2,000 lx for cultures
  • Temperature control from 4 to 35 °C
  • Multi-tier shelving for culture vessels
  • Uniform conditions across all shelves
Request a quote

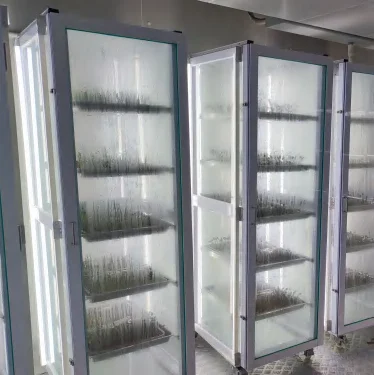

Vernalization / Cold Treatment Room

Vernalization / Cold Treatment Room

A cold room that provides the chilling period some crops need before they flower, and controlled cold treatment for seed, bulbs and planting material. It supports research on winter cereals, temperate fruit, bulbs and vegetables, and pre-treatment before planting or trials.

  • Temperature−1 to 10 °C
  • Humidity40–95 % RH
  • LightNot required
Key features
  • Low temperature range from −1 to 10 °C
  • Humidity between 40 and 95 % RH
  • No lighting required
  • Programmable chilling duration
Request a quote
Plant Pathology Research Room

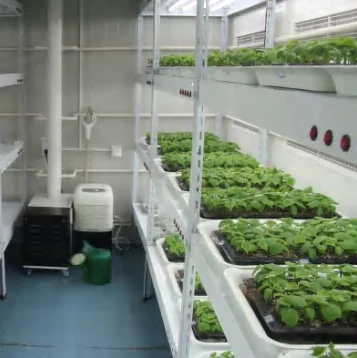

Plant Pathology Research Room

A room for studying plant diseases under controlled conditions, including high humidity that favours infection. Plant pathology and protection laboratories use it to inoculate plants, screen varieties for resistance and test the efficacy of fungicides and biological control agents.

  • Temperature15–40 °C
  • Humidity40–100 % RH
  • Light0–20,000 lx
Key features
  • Humidity up to 100 % RH for infection studies
  • Lighting up to 20,000 lx
  • Controlled conditions for inoculation trials
  • Easy-clean surfaces for hygiene
Request a quote

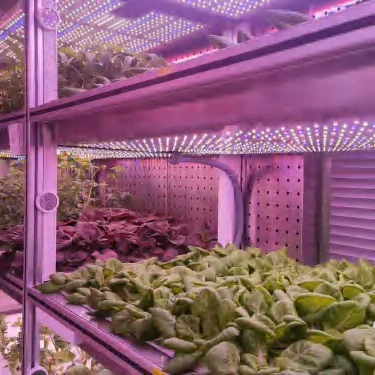

Indoor Vertical Plant Factory

Indoor Vertical Plant Factory

A multi-layer indoor farm that grows leafy greens, herbs, seedlings and research crops under artificial lighting with soilless cultivation. It suits demonstration farms, universities and food security projects in arid regions, producing year-round with efficient use of water and space.

  • Temperature0–45 °C
  • Humidity35–95 % RH
  • Light0–20,000 lx
Key features
  • Multi-layer vertical growing racks
  • Hydroponic, aeroponic or substrate cultivation
  • Nutrient solution pH and EC monitoring
  • Lighting up to 20,000 lx per layer
Request a quote

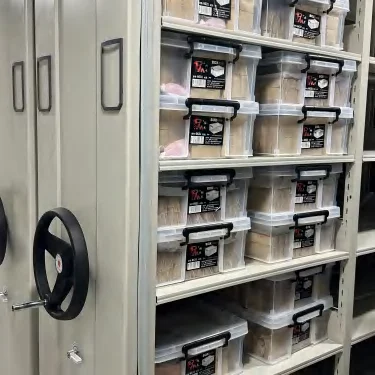

Germplasm Conservation & Storage Facility

Germplasm Conservation & Storage Facility

A cold, dry storage facility that preserves seed collections and genetic resources for the long term. Gene banks, breeding programmes and national biodiversity institutions use it to keep base and active collections viable for many years, safeguarding local varieties and wild relatives.

  • Temperature−20 °C
  • Humidity≤ 45 % RH
  • LightNot required
Key features
  • Storage temperature of −20 °C
  • Low humidity of 45 % RH or below
  • No lighting required
  • Continuous monitoring and alarms
Request a quote

Building Systems

All parameters can be customized to the research programme.

Enclosure & Thermal Insulation

A customizable carbon steel shell with stainless steel panels and a polyurethane insulation core shields the room from outside temperature and humidity swings, with high flame retardancy and compressive strength.

Vertical Growing Racks

Corrosion-resistant cultivation racks and plant growth trays, built to the room size, with adjustable shelf height and individually adjustable lighting on each shelf. A mobile platform assists phenotyping and plant handling.

Illumination Control

Light intensity from 0 to 100,000 lux using suspended high-intensity LED grow lights, planar grow panels or customized light sources, with multispectral modulation to match the spectrum to each crop and growth stage.

Temperature & Humidity Control

Temperature control from 5 to 40 °C, with cooling capability down to −20 °C, and humidity from 50 to 95 % RH. Stability of ±1 °C and ±7–10 % RH, with programmable cycles from 0 to 99.

Air Circulation

Internal circulation, ducted airflow, rack air ports and air curtains for zonal separation distribute temperature, humidity and air evenly, removing micro-environmental differences between cultivation areas.

Irrigation & Nutrient Supply

Optional automated irrigation and nutrient mixing for hydroponic, aeroponic and substrate-based cultivation, with online monitoring of nutrient solution pH and EC and real-time preparation of the solution.

Plant Phenotyping & AI Monitoring

Optional AI-assisted RGB or multispectral imaging tracks seed germination, seedling growth, leaf colour and chlorophyll, plant morphology and stress responses non-destructively, across treatments and genotypes.

Gas (CO2) Control

Controlled exchange of fresh air regulates CO2 concentration in the room, with bottom air intake and top exhaust for efficient airflow management and stable gas conditions during experiments.

Central Control Software

PLC-based control with a PC interface integrates all systems on one platform, with programmable environment settings, remote access and control, automated alerts, power and surge protection, research data management and continuous 24/7 operation.

Uniform conditions across the room

Internal air circulation, ducted airflow and rack ports keep temperature and humidity even on every shelf, so plant position does not distort experimental results.

Programmable day and season cycles

Temperature, humidity and lighting follow programmed cycles, letting researchers recreate diurnal patterns, seasons or stress events and repeat them exactly in later trials.

Data-driven phenotyping

Optional imaging tracks germination, seedling growth, leaf colour and plant structure without harming the plants, producing objective, time-stamped measurements across treatments and genotypes.

Long-term security of research

Continuous 24/7 operation, automatic alerts, remote access and power protection safeguard plants and stored material during nights, weekends, holidays and power disturbances.

Frequently Asked Questions

Which room type do we need?

Start from the main protocol. Germination and nursery rooms suit early growth, speed breeding rooms suit generation advance, stress rooms cover heat and frost studies, and germplasm facilities provide cold, dry storage. Many institutions combine two or three types.

Can one room cover several research programmes?

Yes, within limits. A controlled environment climate room with a wide temperature, humidity and light range can host different trials in sequence. Where trials must run at the same time, separate rooms or partitioned zones are more practical.

What site preparation is required?

The room needs a level floor, adequate electrical supply, space around the enclosure for condensing units and, where irrigation is included, water supply and drainage. ASFAN reviews the site with you before the layout is finalised.

Specify your plant growth room

Share your crops, protocols, target climate ranges and floor plan. ASFAN will recommend the room type and systems and prepare a quotation.
